Easy Solid Install Kits for Condensing Units 5HP Series |
With the rapid development of society, people's understanding of products gradually deepens, and customers' requirements for the products they use become more diversified and more precise.
In the spirit of customer demand is the highest requirement of the product, Refworld organizes the company team to create a targeted series of products to achieve a diversified product series with multiple models and multiple functions to meet customer diversification The product demand and the selection of accessories.
In order to achieve the above goals, the BLUE Easy Solid Install Kits series came into being, adhering to the standard and universal design concept of accessories, giving customers the largest product selection space. The products used by users are determined by the users themselves, and the diversified product needs of customers are met with standardized parts configuration.
BLUE Easy Solid Install Kits series realize one machine with multiple models, structural parts and most of the accessories can be used in common, adjust different types of compressors, and then our company can match the corresponding other accessories to meet customer requirements.
The following is the matching instructions for 5HP Series:

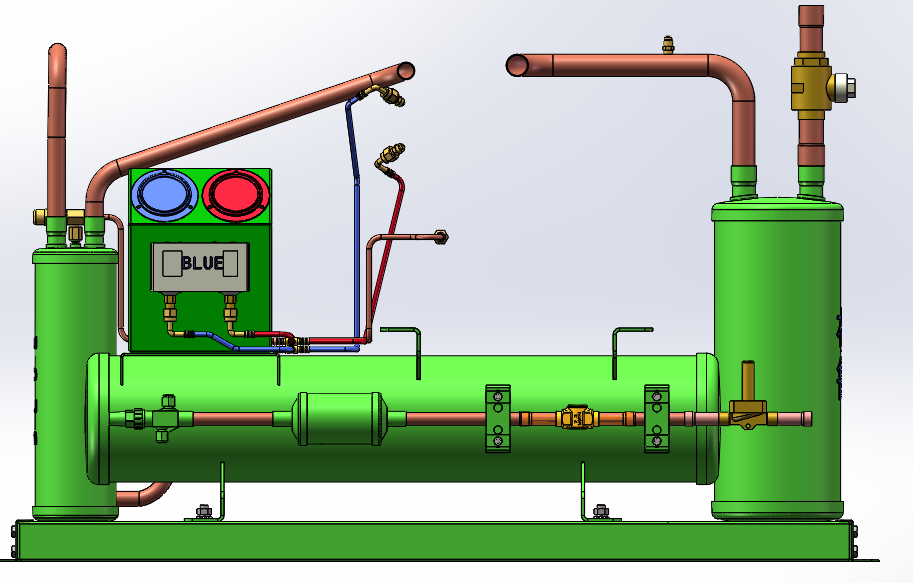

5HP Easy Solid Install Kits series, the development standard working condition is T1=+45℃, T0=-15℃. It belongs to the Small 4-Cylinders Compressor piston compressors. It can cover all small Small 4-Cylinders Compressor models from 3HP to 9HP, which can realize multiple types of one machine and multiple uses of one type, simplifying complex products.
The following matching table only lists BITZER compressors and RFC compressors as examples:
Compressor Type | Application | Bitzer Model | RFC Model | Easy Solid Install Kits Series Code | Matched condenser model |
Small 4-Cylinders Compressor | M/L Temp | 4FES-3 | RFC-4FC-3.2 | 90-61002 | LCH-12/33 LCH-15/42 LCH-19/52 |
M/H Temp | 4FES-5 | RFC-4FC-5.2 | |||
M/L Temp | 4EES-4 | RFC-4EC-4.2 | |||
M/H Temp | 4EES-6 | RFC-4EC-6.2 | |||
M/L Temp | 4DES-5 | RFC-4DC-5.2 | |||
M/H Temp | 4DES-7 | RFC-4DC-7.2 | |||
M/L Temp | 4CES-6 | RFC-4CC-6.2 | |||
M/H Temp | 4CES-9 | RFC-4CC-9.2 |
Compressor, as the heart of the refrigeration unit, has always been the main consideration for the customer when choosing a unit.
BLUE Easy Solid Install Kits series deeply appreciate the customers’ preference for different brands of compressors. Therefore, it combines the most popular brands of compressors on the market and summarizes them into a framework. When you choose a 5HP Easy Solid Install Kits the compressor is matched according to the needs of customers. Save inventory and reduce inventory costs.
No. | Item | Description | Category |
1 | Liquid receiver | Horizontal type with compressor mounting feet, Inlet and outlet rotalock valves, Gauge board and clamp mounting feet | Standard |
2 | Oil Separator | Standard | |
3 | Suction Accumulator | Standard | |
4 | Filter Drier | Standard | |
5 | Sight Glass | Standard | |
6 | Solenoid Valve | Valve body with Coil | Standard |
7 | Pressure control set | Pressure controller, Pressure hose,Oil gauge and install board | Standard |
8 | Frame Set | Frame with screw bolts | Standard |
9 | Oil Retrun check valve | For Oil separator oil return use | Optional |
10 | Ball valve | Suction accumulator Inlet | Optional |
11 | Connection Pipe set | Discharge,Liquid supply、Gas return, Oil return, Clamp | Optional |
