BLR/AW&BLR/AF Sealed And Flanged Oil Separator |
General Description
◆General intended purpose of Oil Separators is to separate oily discharge gases and ensure regular and correct recycling of oil to compressor’s case.
◆Oil separators are used in order to form high oil temperature and prevent migration of cooling liquid and gas, and separate cooling liquid in oil and taking out gas.
◆Buoy system passes through very accurate production process, and then its totally faultless operation is ensured through various tests.
◆Oil separator must be selected according to properties of compressor in use.
◆Oil separators must be used vertically between compressor and condenser.
◆Standard type oil separators are fairly easy to used because there is no replaceable parts.
◆These are more low-cost products compared to other types of oil separators.
◆Oil separators are mechanical product, and therefore they undergo fairly accurate production process.
◆Materials used in the product; buoy ball and ratchet, oil filter and separator, and valve pin are fully made of stainless material.
◆Oil return tube and buoy valve are made of brass material.
Connection Parts
◆We determined Input and Output connections according to volume of products
◆ODS connection is used in standard products.
◆ Different connection may be used upon request.
Technical Data

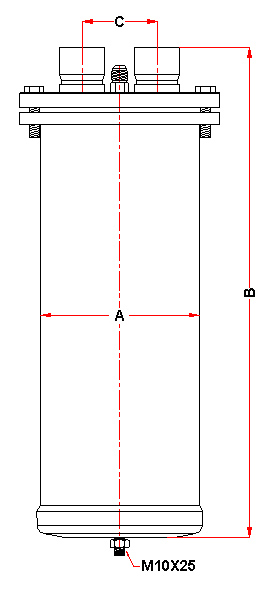

MODEL | CONNECTION SIZE | Oil Returm | CONNECTION (mm) | |||
inch | mm | A | B | C | ||
BLR/A-W 55833 | 3/8 ODF | 10 | 1/4" | 102 | 279 | 48 |
BLR/A-W 55824 | 1/2 ODF | 12 | 1/4" | 102 | 279 | 48 |
BLR/A-W 55855 | 5/8 ODF | 16 | 1/4" | 102 | 338 | 48 |
BLR/A-W 55866 | 3/4 ODF | 19 | 1/4" | 102 | 383 | 48 |
BLR/A-W 55877 | 7/8 ODF | 22 | 1/4" | 102 | 384 | 48 |
BLR/A-W 55888 | 1 ODF | 25 | 1/4" | 102 | 404 | 48 |
BLR/A-W 55889 | 1 1/8 ODF | 28 | 1/4" | 102 | 414 | 48 |
BLR/A-W 559011 | 1 3/8 ODF | 35 | 1/4" | 102 | 524 | 48 |
BLR/A-W 569011 | 1 3/8 ODF | 35 | 3/8" | 159 | 399 | 75 |
BLR/A-W 569213 | 1 5/8 ODF | 42 | 3/8" | 159 | 480 | 75 |
BLR/A-W 569417 | 2 1/8 ODF | 54 | 3/8" | 159 | 485 | 75 |
MODEL | CONNECTION SIZE | Oil Returm | CONNECTION (mm) | |||
inch | mm | A | B | C | ||
BLR/A-F 58824 | 1/2 ODF | 12 | 1/4" | 102 | 285 | 48 |
BLR/A-F 58855 | 5/8 ODF | 16 | 1/4" | 102 | 370 | 48 |
BLR/A-F 58877 | 7/8 ODF | 22 | 1/4" | 102 | 455 | 48 |
BLR/A-F 58889 | 1 1/8 ODF | 28 | 1/4" | 102 | 490 | 48 |
BLR/A-F 589011 | 1 3/8 ODF | 35 | 1/4" | 102 | 520 | 48 |
BLR/A-F 579011 | 1 3/8 ODF | 35 | 3/8" | 159 | 404 | 75 |
BLR/A-F 579213 | 1 5/8 ODF | 42 | 3/8" | 159 | 490 | 75 |
BLR/A-F 589213 | 1 5/8 ODF | 42 | 1/4" | 102 | 525 | 48 |
BLR/A-F 579417 | 2 1/8 ODF | 54 | 3/8" | 159 | 495 | 75 |
MODEL | R12 | R22/R407C | R502 | R134A | R-404A/R507 | |||||||||||||||||
FLANGED | SEALED | -40F/C | 40F(14C) | -40F/C | 40F(14C) | -40F/C | 40F(14C) | -40F/C | 40F(14C) | -40F/C | 40F(14C) | |||||||||||
TONS | KW | TONS | KW | TONS | KW | TONS | KW | TONS | KW | TONS | KW | TONS | KW | TONS | KW | TONS | KW | TONS | KW | |||
BLR/A-F 58824 | 5301 | BLR/A-W 55824 | 1 | 3.54 | 1.5 | 5.31 | 1.5 | 5.31 | 2 | 7.08 | 1.5 | 5.31 | 2 | 7.08 | 1 | 3.54 | 1.75 | 6.2 | 1.5 | 5.31 | 2 | 7 |
BLR/A-F 58855 | 5302 | BLR/A-W 55855 | 3 | 10.62 | 4 | 14.2 | 4.5 | 15.9 | 5.5 | 19.5 | 4.75 | 16.8 | 5.75 | 20.36 | 3.25 | 11.5 | 4.5 | 15.9 | 4 | 14.16 | 5.5 | 19 |
BLR/A-F 58877 | 5303 | BLR/A-W 55877 | 4.5 | 15093 | 5.5 | 19.5 | 7 | 24.8 | 8 | 28.3 | 7.5 | 26.6 | 8.5 | 30.09 | 4.75 | 16.8 | 6.5 | 12 | 6.5 | 23.01 | 8.5 | 30 |
BLR/A-F 58889 | 5304 | BLR/A-W 55889 | 6 | 21024 | 7.5 | 26.6 | 9 | 31.9 | 11 | 37.2 | 9.5 | 33.6 | 11.5 | 40.71 | 6.5 | 23 | 8.5 | 30.1 | 8.5 | 30.09 | 11 | 38 |
BLR/A-F 589011 | 5305 | BLR/A-W 559011 | 7.5 | 26055 | 10 | 35.4 | 11.5 | 40.7 | 14 | 47.8 | 12 | 42.5 | 14.5 | 51.33 | 8 | 28.3 | 11.5 | 40.7 | 10.5 | 37.17 | 14 | 49 |
- | - | BLR/A-W 569213 | 9 | 31086 | 11.5 | 40.7 | 14 | 49.6 | 18 | 62 | 16 | 56.6 | 17.5 | 61.95 | 9.5 | 3.6 | 13.25 | 46.9 | 14 | 49.56 | 17 | 60 |
BLR/A-F 579011 | 6303 | BLR/A-W 569011 | 9 | 31069 | 12 | 42.25 | 13 | 45.77 | 14 | 49.8 | 15 | 52.8 | 20 | 70.4 | 9.5 | 33.4 | 13.7 | 48.2 | 11 | 38.7 | 19 | 66.9 |
BLR/A-F 579213 | 6304 | BLR/A-W 569213 | 11 | 38.94 | 14 | 49.6 | 16 | 56.6 | 18 | 63.7 | 20 | 70.8 | 24 | 84.96 | 11.8 | 41.6 | 16 | 56.6 | 7.5 | 61.95 | 23 | 81 |
BLR/A-F 579417 | 6305 | BLR/A-W 569417 | 17 | 60.18 | 22 | 77.9 | 25 | 88.5 | 30 | 106 | 30 | 106 | 35 | 123.9 | 18 | 63.7 | 25.25 | 89.4 | 26 | 92.04 | 34 | 121 |
